Conversion Graph

Graph for displaying a conversion path

Get it

If you are going to use this library I recommend using the version on Central repository. You can add it to your project by adding this line to your dependecies inside your build.gradle:

  compile 'com.ncona:conversion-graph:1.0.0@aar'

If you prefer you can always download this repository and generate your own aar by running gradle build.

Use it

Start by importing the library:

import com.ncona.conversiongraph.Graph;

You need to pass the context to the constructor:

Graph conversiongraph = new Graph(this);

Then you will need to create a list of Measures. A Measure consists of a label and an array of values. Here is an example of how to create this list of Measures:

import com.ncona.conversiongraph.models.Measure;

// Some more code

// Create the list and populate it
List<Measure> measures = new ArrayList<Measure>();
int[] values = { 10000, 5000 };
measures.add(new Measure("Leads", values));
int[] values2 = { 3000, 2800 };
measures.add(new Measure("Prospects", values2));
int[] values3 = { 500, 100 };
measures.add(new Measure("Customers", values3));

// Add the measures to the graph
conversiongraph.setMeasures(measures)

// Some more code

For each of the values you will need to provide a legend. In the previous example we have two values per measure so we would need two legends:

import com.ncona.conversiongraph.models.Legend;

// Some more code

Legend[] legend = {
    new Legend("this month", Color.YELLOW),
    new Legend("Last month", Color.RED),
};
conversiongraph.setLegends(legend);

// Some more code

Now your view is ready to be inserted anywhere you want:

setContentView((View)conversiongraph);

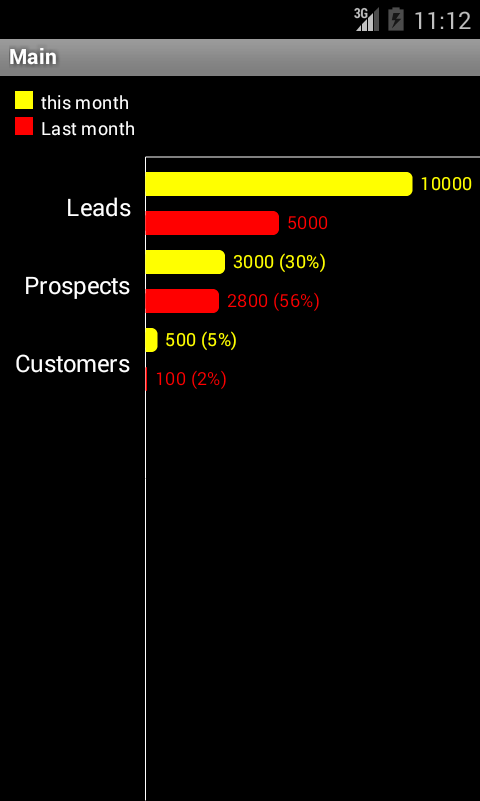

The previous example will give you this result:
